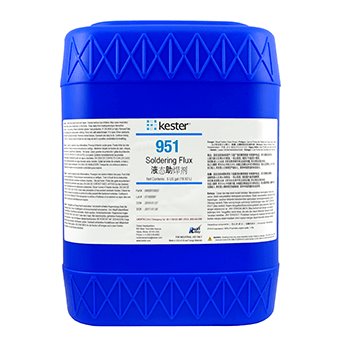

951 Soldering Flux

951 Soldering Flux

Kester 951 is a zero-halogen, non-rosin flux designed for wave soldering, conventional and surface mount circuit board assemblies. The extremely low solids content (2.0%) and nature of the activator system results in practically no residue left on the assembly after soldering. Boards are dry and cosmetically clean as they exit the wave solder machine. There are no residues to interfere with electrical testing. 951 exhibits improved soldering performance to minimize solder bridges (shorts) and excessive solder defects. This flux is suitable for automotive, computer, telecommunications and other applications where reliability considerations are critical. The surface insulation resistance on soldered boards is higher than that provided by typical water-soluble fluxes. 951 contains a corrosion inhibitor such that no corrosion products are formed when bare copper surfaces are exposed to humid environments. Share Find A Distributor To Buy
Size (liters) Size (gallons) Halogen Content Description Part # Type Process Flux Type
1 Zero-Halogen 951 Soldering Flux 1 GAL 6300000951 No-Clean Wave Soldering Alcohol-based Organic Acid
5 Zero-Halogen 951 Soldering Flux 5 GAL 6400000951 No-Clean Wave Soldering Alcohol-based Organic Acid
53 Zero-Halogen 951 Soldering Flux 53 GAL 6500000951 No-Clean Wave Soldering Alcohol-based Organic Acid
20 Zero-Halogen 951 Soldering Flux 20 LIT 6600000951 No-Clean Wave Soldering Alcohol-based Organic Acid
