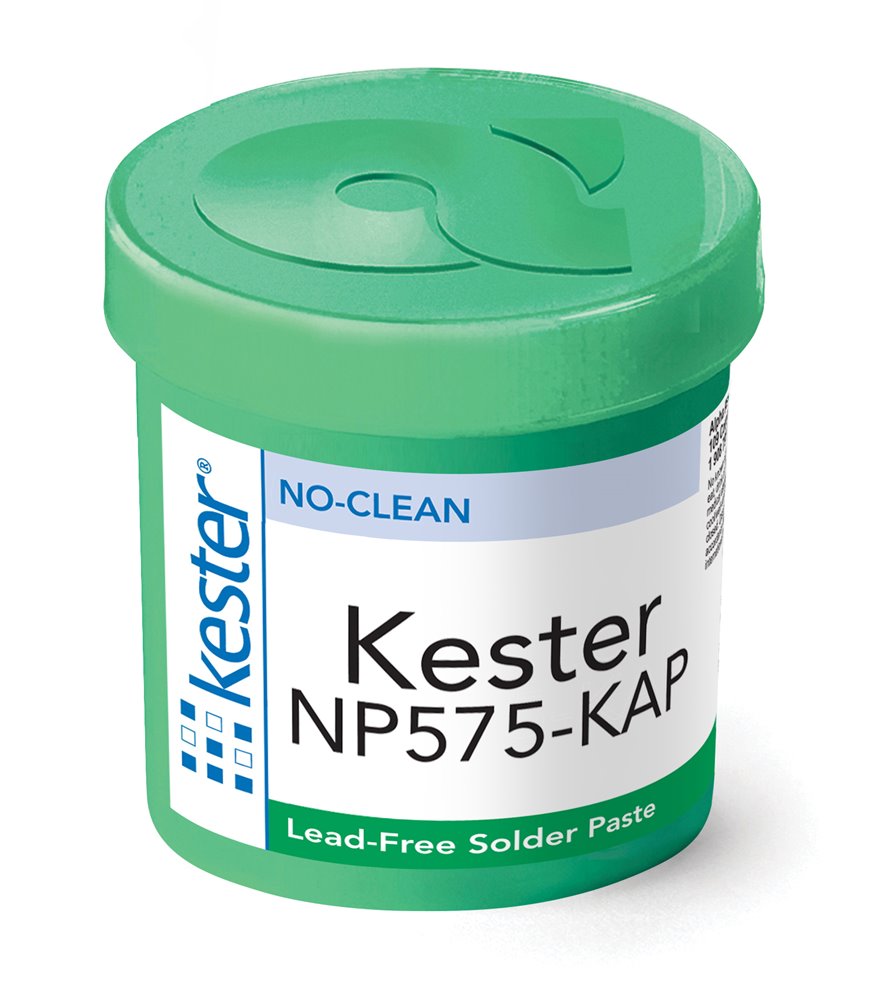

Kester NP575-KAP Solder Paste

NP575-KAP Solder Paste

Kester’s NP575-KAP is a next generation, high performance, zero-halogen, lead-free, no-clean solder paste. It has been specifically developed to be a high first-pass-yield, broad latitude, high reliability, material suited for multiple applications including automotive and aerospace. This material “prints like a brick” providing a wide print window capable down to area ratios >0.60, repeatable transfer efficiencies on fine feature apertures down to 01005 components, with excellent coalescence down to 170 µm circle and square apertures. Along with the ability to achieve CpK values >2.0 with transfer efficiencies between 60% - 120% at area ratios. Additionally, this material provides outstanding electro-chemical performance, even under very harsh environmental conditions along with being pin-testable and is IPC J-STD-004B as ROL0. NP575-KAP is Kester’s leading no-clean paste and part of our high-performance portfolio of products.

Share
Alloy Powder Size Type Halogen Content Lead Content Description Part # Process
Sn96.5 Ag3.0 Cu 0.5 4 No-Clean Zero-Halogen Lead-Free Kester NP575-KAP 771 88.8-4-M17 JAR 500 KG 275500 Screen/Stencil Printing
Sn96.5 Ag3.0 Cu 0.5 4 No-Clean Zero-Halogen Lead-Free Kester NP575-KAP 771 88.8-4-M17 C06 600 KG 275498 Screen/Stencil Printing
Innolot 4 No-Clean Zero-Halogen Lead-Free Kester NP575-KAP 969 88.8-4-M17 C06 600 KG 275501 Screen/Stencil Printing
Innolot 4 No-Clean Zero-Halogen Lead-Free Kester NP575-KAP 969 88.8-4-M17 JAR 500 KG 275502 Screen/Stencil Printing
