268 Flux-Cored Wire

Kester 268 Flux-Cored Wire is a zero-halogen wire optimized for robotic soldering applications. With its unique chemistry system, 268 provides consistent workability performance for both robotic and manual soldering in the electronics industry, with performance equivalent to conventional halogen/ halide-based systems. 268 provides a clean release which prevents occurrences of bridges and protrusions, even in narrow-pitch automated drag soldering. The use of 268 results in a clear post-soldering residue without the need for cleaning. 268 is classified as Type ROL0 flux under J-STD-004B specifications. 268 is zero-halogen and halide-free with no intentional addition of bromine and chlorine, conforming to the strictest requirements of IEC 61249-2-21, JPCA-ES-01 and IPC-410B specifications. Share
Find Channel Partner
SDS
Alloy Flux Diameter (in) Diameter (mm) Core Flux % Lead Content Halogen Content Description Part # Type
Sn96.5Ag3.0Cu0.5 268  0.010  0.25  66 3.3% Lead-Free Zero-Halogen Sn96.5Ag3.0Cu0.5 3.3%/268 .010 113 G Robo SPL
 9370699510
 No-Clean
Sn96.5Ag3.0Cu0.5
 268 0.015 0.4 66 3.3% Lead-Free Zero-Halogen Sn96.5Ag3.0Cu0.5  3.3%/268  .015 500 G Robo SPL 9670699515
 No-Clean
Sn96.5Ag3.0Cu0.5
 268 0.020 0.5 66 3.3% Lead-Free Zero-Halogen Sn96.5Ag3.0Cu0.5  3.3%/268  .020 500 G Robo SPL
 9670699520
 No-Clean
Sn96.5Ag3.0Cu0.5
 268 0.025 0.6 66 3.3% Lead-Free Zero-Halogen Sn96.5Ag3.0Cu0.5  3.3%/268  .025 500 G Robo SPL
 9670699525 No-Clean
Sn96.5Ag3.0Cu0.5
 268 0.031 0.8 66 3.3% Lead-Free Zero-Halogen Sn96.5Ag3.0Cu0.5  3.3%/268  .031 500 G Robo SPL
 9670699531 No-Clean
Sn96.5Ag3.0Cu0.5
 268 0.040 1.0 66 3.3% Lead-Free Zero-Halogen Sn96.5Ag3.0Cu0.5  3.3%/268  .040 500 G Robo SPL 9670699540 No-Clean
K100LD 268 0.015 0.4 66 3.3% Lead-Free Zero-Halogen K100LD  3.3%/268  .015 500 G Robo SPL
 9695749515
 No-Clean
K100LD 268 0.020 0.5 66 3.3% Lead-Free Zero-Halogen K100LD  3.3%/268  .020 500 G Robo SPL
 9695749520 No-Clean
K100LD 268 0.025 0.6 66 3.3% Lead-Free Zero-Halogen K100LD  3.3%/268  .025 500 G Robo SPL
 9695749525
 No-Clean
K100LD 268 0.031 0.8 66 3.3% Lead-Free Zero-Halogen K100LD  3.3%/268  .031 500 G Robo SPL
 9695749531 No-Clean
K100LD 268 0.040 1.0 66 3.3% Lead-Free Zero-Halogen K100LD  3.3%/268  .040 500 G Robo SPL
 9695749540 No-Clean
Sn63Pb37 268 0.015 0.4 66 3.3% Leaded Zero-Halogen Sn63Pb37 3.3%/268 .015 500 G Robo SPL 9663379515
 No-Clean
Sn63Pb37 268 0.031 0.8 66 3.3% Leaded Zero-Halogen Sn63Pb37 3.3%/268 .031 500 G Robo SPL
 9663379531 No-Clean

0.8
40500032

Sn63Pb37
Sn63Pb37
40500041

Process Compatible Products

NP545 Solder Paste

NP545 Solder Paste

NF372-TB Soldering Flux

NF372-TB Soldering Flux

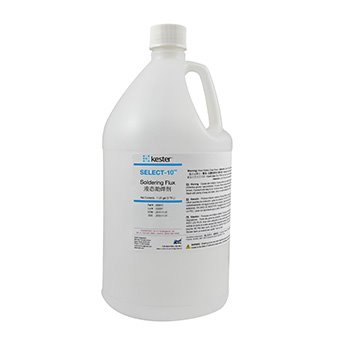

SELECT-10™ Selective Solder Flux

SELECT-10™ Selective Solder Flux

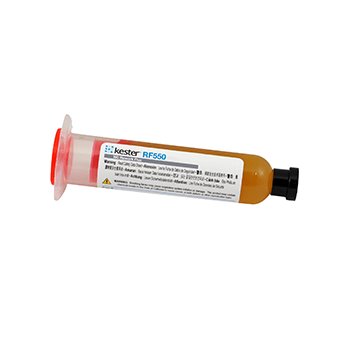

RF550 Rework Flux
